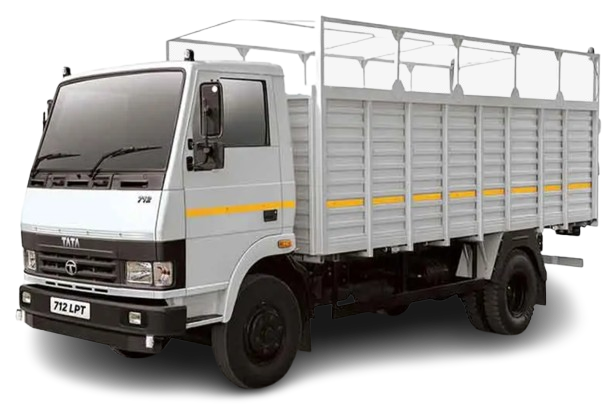

TATA 712 LPT
Ab Profit Hoga Aur Bhi Zyaada
Dual Mode FE Switch
Cruise Control
THU Bearing
Firmware Over The Air
Why Choose 712 LPT?
Tata Trucks Desh Ke Trucks
E-commerce
Food Grains
Cement
FMCG
LPG Cylinder
Container
White Goods
Fruits & Vegetables
| Models | 712 LPT DCR 125 B6M5 ST & TT |
|---|---|
| Engine | 4SP BS6 Phase2 TCIC engine |
| Engine Type | 4 Cylinder in line water cooled direct Injection diesel engine with intercooler |
| Engine Displacement | 2956 cc |
| Power | 92 kW (125 Ps) @ 2 800 r/min (Heavy Mode) | 73.6 kW (100 Ps) @ 2800 r/min (Light Mode) |
| Torque | 360 Nm @ 1400 - 1800 r/min (Heavy Mode) | 300 Nm @ 1000 - 2200 r/min (Light Mode) |
| Clutch | Single plate dry friction type - 280 mm dia |
| Gearbox | G400 (5F, 1R), Cable Shift Mechanism |
| Gearbox Ratio | 1st- 6.45, 2nd - 3.66, 3rd- 2.29, 4th -1.49, 5th - 1.00, Rev - 6.26 |
| Suspension - Front Type | Parabolic Suspension with rubber bush and Hydraulic double acting telescopic shock absorbers |
| Suspension - Rear Type | Semi-Elliptical Leaf Spring with Aux Springs |
| Tyres | Radial 8.25 R 16 Low CRR Tyre (FR-2, RR-2, Spare -1) |
| Front Tyre Spec | 8.25R16 -16PR Radial Low CRR Tyre |
| Rear Tyre Spec | 8.25R16 - 16PR Radial Low CRR Tyre |
| Cabin Type | Day Cab |
| Steering Type | Tilt & Telescope Power Steering (Dia - 420 mm 2 spoke) |
| Brakes Type | Dual Circuit Full Air S" Cam Brakes With Auto Slack Adjuster (Drum - Drum) (Dia - 360 mm) |
| Ground Clearance | 220 mm |
| Gradeability | 33% (ST) | 32% (TT) |
| Rear Axle | TATA RA 1109R Fully Floating Benjo Axle (RAR - 4.857) |
| Battery | 12 V - 100 Ah |
| Fuel Tank Capacity | 90 L, 120 L |
| Load Body Variants | CAB, NSD, High Deck, Container, Reefers |
| GVW | 7490 kg |
| FAW | 3640 kg |
| RAW | 3850 kg |
| Long Member Size (LxBxH) | 186 mm x 60 mm x 4 mm |
| Wheelbase | 3550 (ST) / 3920 (TT) |
| TCD | 12500 mm / 13500 mm |
| Seating Capacity | |
| DEF Tank Size | |
| Service Interval | |
| Propeller Shaft | |
| Ignition Switch |
Tata Motors Commercial Trucks
Tata Motors trucks connect India and power the engines of the nation’s growing economy. With multiple options for payload, drivetrains, and applications, Tata Motors offers a wide range of light, medium, and heavy trucks. Advanced technologies and a suite of value-add services ensure our trucks promote smart mobility and deliver progress with best-in-class operating economics.
