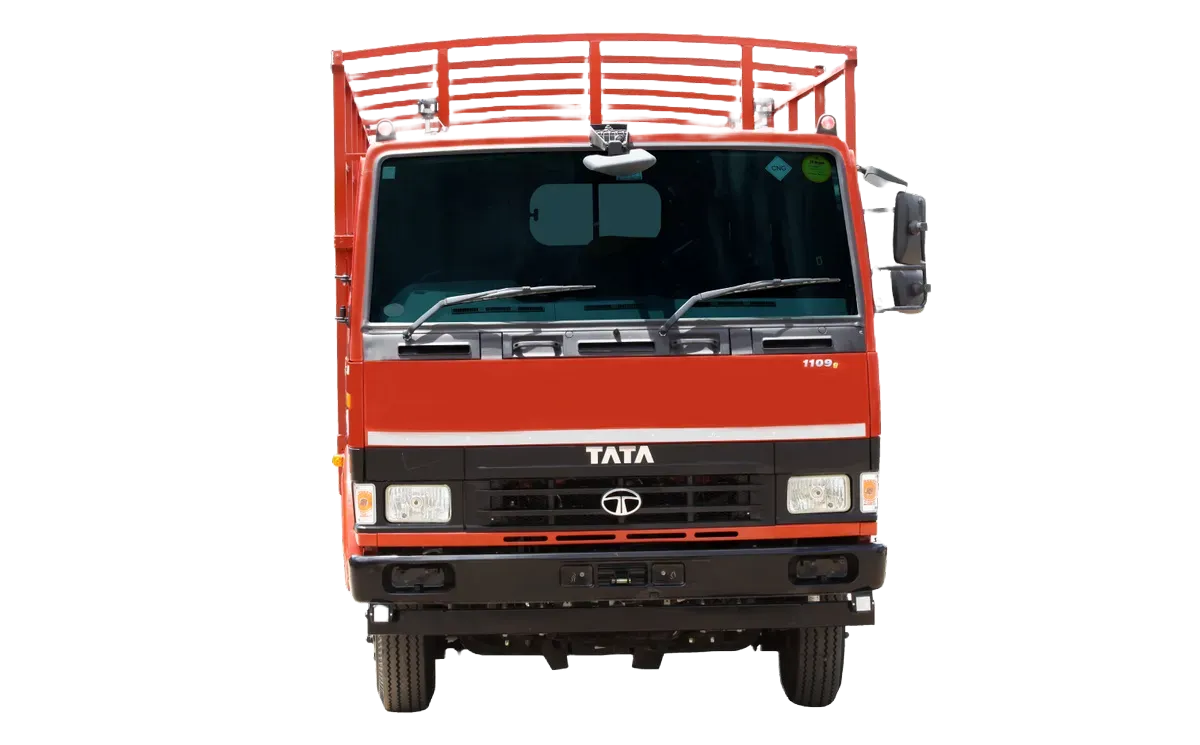

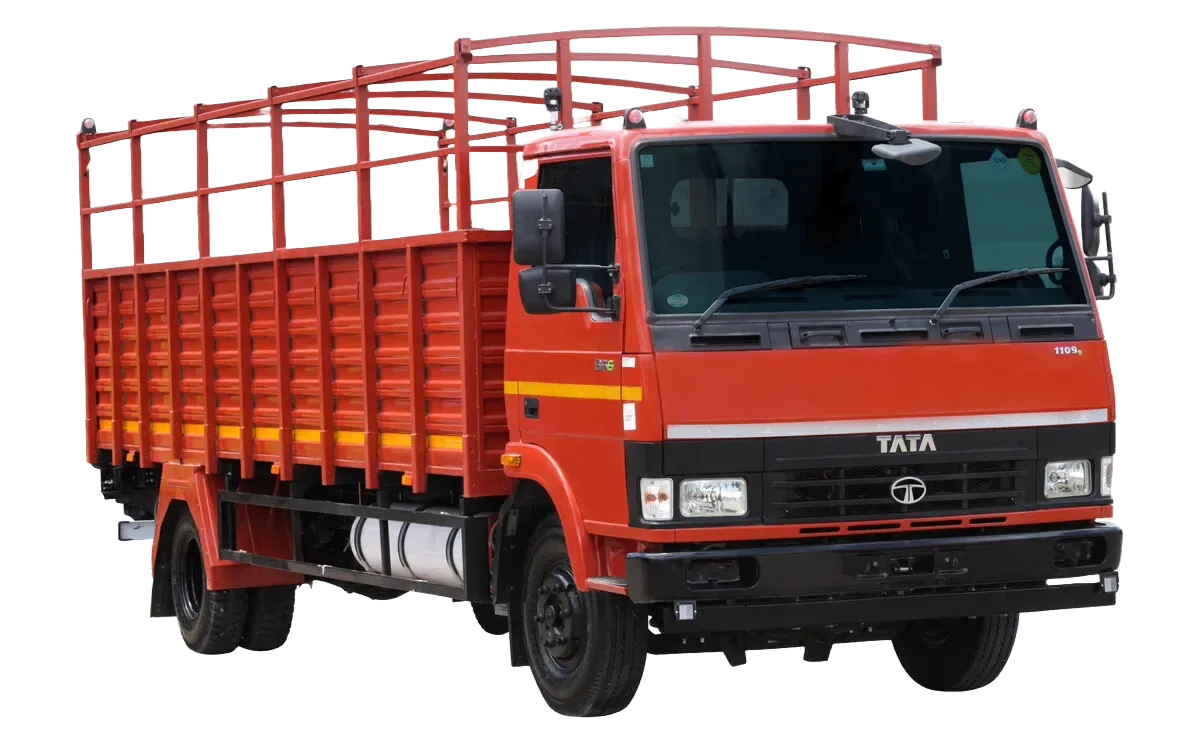

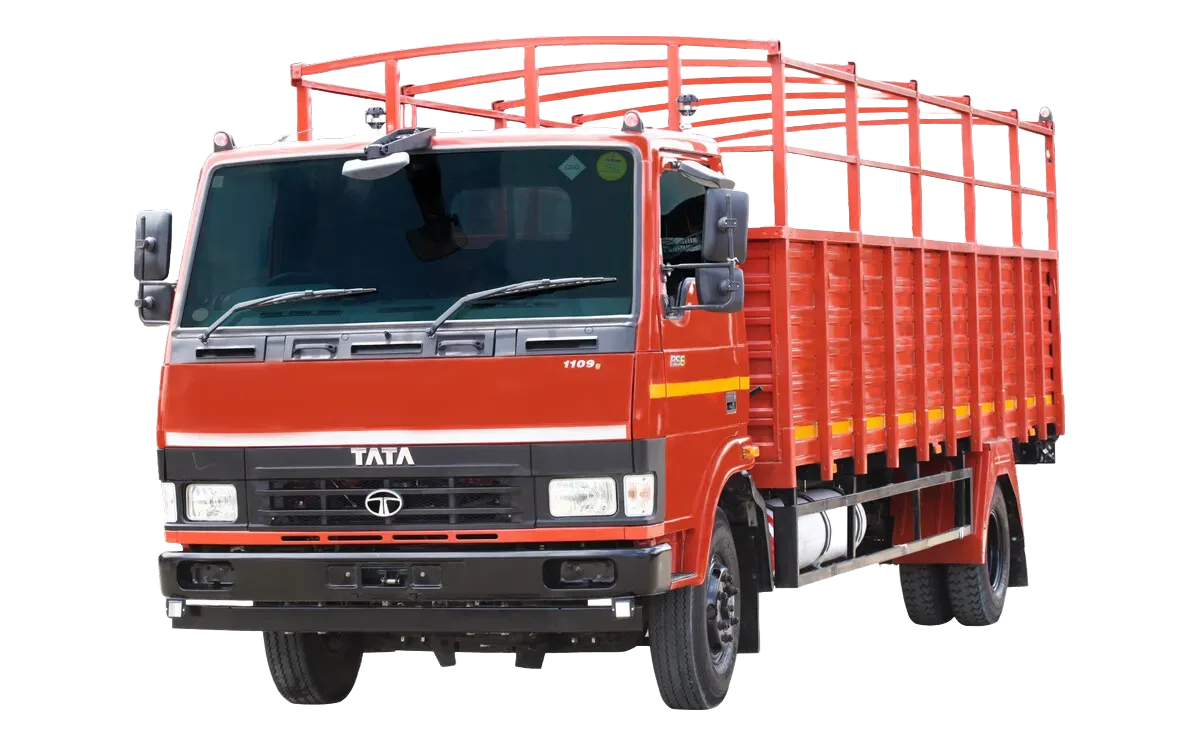

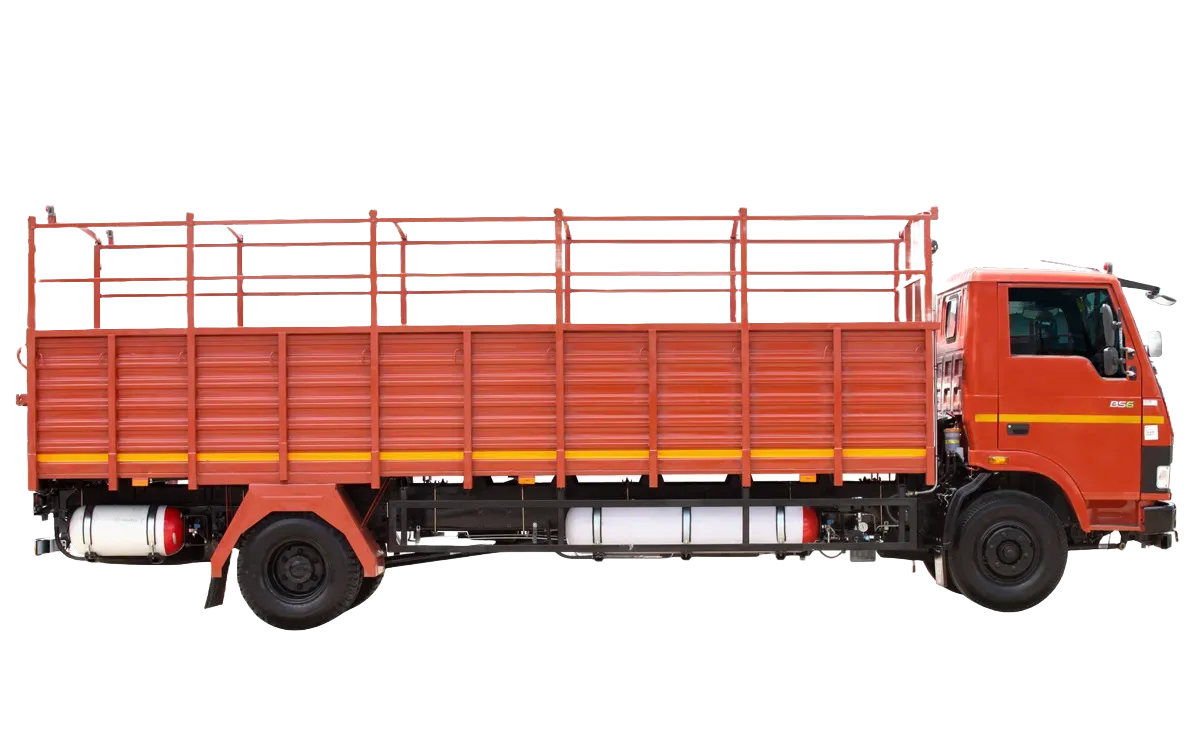

TATA 1109g LPT

🔷 Key Highlights:

  • Fuel Type: CNG (Eco-friendly & efficient)
  • Engine: 3.8L SGI NA CNG Engine (Inline 4-cylinder)
  • Maximum Power: 62 kW (85 HP) @ 2500 rpm
  • Maximum Torque: 285 Nm @ 1200–1600 rpm
  • Gearbox: G550 (5F, 1R), NHC Cable Shift Mechanism
  • Clutch: Single plate dry friction type, 310 mm dia (with booster)
  • Top Speed: Approx. 80 km/h
  • Gradeability: 21.0%

📦 Payload & Dimensions:

  • GVW (Gross Vehicle Weight): 11,449 kg
  • FAW (Front Axle Weight): 4000 kg
  • RAW (Rear Axle Weight): 6500 kg
  • Wheelbase Options: 3920 mm / 4500 mm / 4930 mm
  • Load Body Types: CAB & High Deck
  • Load Body Dimensions (L x W x H):
  • HSD: Up to 6915 mm x 2260 mm x 2090 mm
  • Tyres: 8.25R16 – 16 PR (Low CRR)
  • Ground Clearance: 217 mm
  • Turning Circle Diameter (TCD): 17.0 m (approx. 20 ft)

🛠 Features:

  • Hydraulic Power Steering
  • Brakes: Hydraulic, Tilt & Telescopic with 420 mm dia (4-spoke)
  • Parabolic suspension (front) with rubber bush + hydraulic shock absorbers
  • Semi-elliptical leaf springs (rear)
  • Wide 2200 mm LPT Cabin
  • Gear Shift Advisor
  • Low CRR Tyres for better mileage
  • FleetEdge Telematics (connected vehicle)
  • Digital cluster with advanced driver information
